Raws li cov chaw tsim khoom hauv Suav teb, peb zoo siab los qhia peb cov khoom tshiab, X-ray Foreign Body Detector. Cov khoom no yog tsim los pab cov tub lag luam tshawb xyuas lub cev txawv teb chaws hauv lawv cov khoom, txhim kho kev nyab xeeb thiab zoo ntawm lawv cov khoom. Peb nkag siab qhov tseem ceeb ntawm kev xa cov khoom uas muaj kev nyab xeeb rau kev noj, thiab yog li ntawd peb tau ua nws peb lub luag haujlwm los muab cov kev daws teeb meem zoo rau peb cov neeg siv khoom. Hauv kev qhia txog cov khoom no, peb yuav ua tib zoo saib seb peb cov khoom muaj dab tsi thiab nws cov txiaj ntsig rau cov tub lag luam.

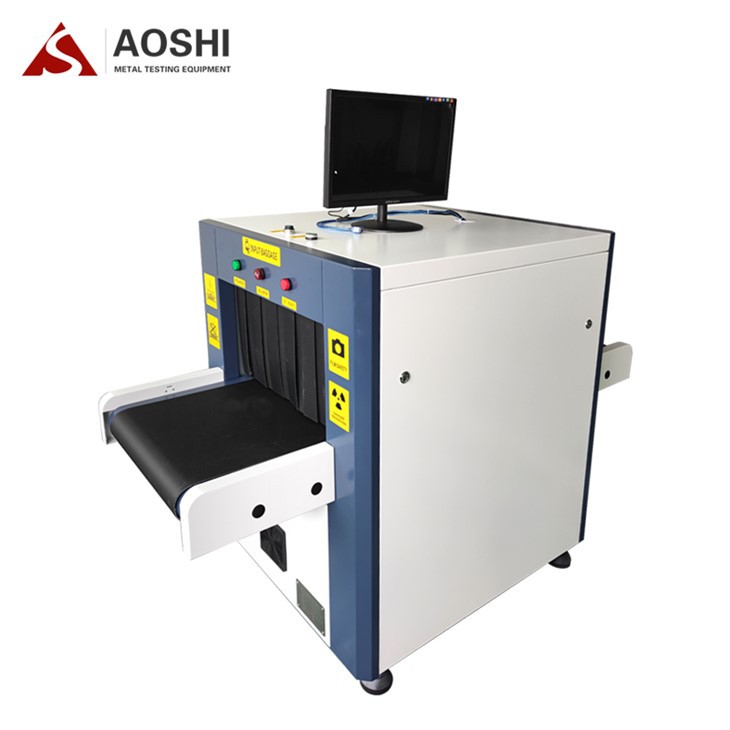

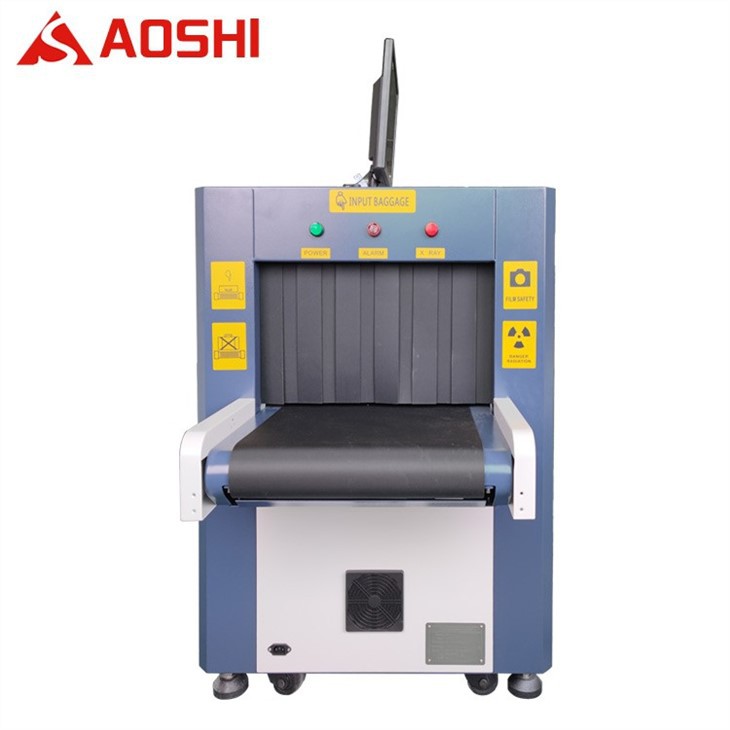

Peb lub X-ray Foreign Body Detector yog tsim los nrog cov thev naus laus zis siab heev, muaj lub tshuab ua haujlwm siab ceev thiab lub ntsuas hluav taws xob rhiab tuaj yeem kuaj xyuas lub cev txawv teb chaws me me li 0.3mm hauv qhov loj. Lub tshuab ntes kuj tau nruab nrog lub vijtsam kov, ua kom yooj yim siv txawm tias cov neeg tsis paub txog kev siv tshuab. Tsis tas li ntawd, cov khoom yog tsim los kom compact thiab lub teeb yuag, ua rau nws haum rau siv nyob rau hauv ntau qhov chaw, nrog rau cov factories thiab lub chaw soj nstuam. X-ray Foreign Body Detector los nrog ntau yam ntawm cov yam ntxwv kho tau, tso cai rau cov neeg siv kho qhov chaw raws li lawv cov kev xav tau tshwj xeeb.
Software ua haujlwm:
1. Cov duab ua haujlwm: xim dub-thiab-dawb hloov pauv, duab inversion, duab rub rov qab, txhim kho duab, dynamic magnifying iav, greyscale zaub, shielding chaw, thiab lwm yam
2. Duab database: khaws 500000 dluab thiab hloov lawv mus rau mobile hard disk thiab USB disk nyob rau hauv tej batch
3. Duab cia hom: arbitrary conversion, txhawb tag nrho cov duab browsers tam sim no
4. Intelligent identification function: muab cov ntaub ntawv qhia txog tus qauv thiab cov neeg siv lub tsev qiv ntawv
5. Tus txiv neej tshuab kev sib cais tswj: cov duab tso saib ib feem yog ntsia rau ntawm lub console tshwj xeeb, uas tuaj yeem muab tso rau hauv qhov kev ncua deb thiab ntau dua humanized.
Cim npe nrov: Tuam Tshoj x-ray txawv teb chaws lub cev detector lwm tus neeg, manufacturers, hoobkas
Technical parameters:
1. Channel loj: channel txoj kab uas hla loj cheeb tsam yog nyob rau hauv 1600 square centimeters, uas tuaj yeem hloov kho thiab kho raws li cov khoom tsim.
2. Dav dav: 500mm * 300mm, 400mm * 200mm, 300mm * 150mm
3. Peripheral dimension ntawm cov khoom siv: 1800mm ntev × Dav 600mm × 1500mm siab
4. Kev txheeb xyuas qhov tseeb: hlau pob nrog txoj kab uas hla ntawm 1.2mm
5. Conveyor siv ceev: stepless ceev tswj, imported nruas, 10-40m / min (adjustable)
6. Luag hnyav ntawm txoj siv conveyor: 42 kg
7. Ua haujlwm voltage AC220V, 50 ± 3HZ
8. Lub zog: 0.0W (0.4 kWh / h)
9. Kev khiav hauj lwm kub / av noo: 0 degree ~ 60 degree / 20% ~ 95% (tsis condensing)
10. Kev txheeb xyuas qhov tseeb: siab txhais, intuitive heev kom pom awg40 hlau (kom paub meej)
X-ray qhov chaw: Japanese X-ray qhov chaw nrog tsawg koob, micro tsom, ceramic raj thiab tsis siv neeg hloov fais fab
Ntes: British multimode {{0}}.2 × 1.0 (mm) cheeb tsam array CMOS sensor
Processor: tag nrho embedded DSP system
Cov duab pom: qib kho mob 19 nti siab daws teeb meem tau txais yuav
Cov duab daws teeb meem: 1536 × 1280, RGB24 ntsis xim zaub, paub txog ultra-siab txhais duab zaub
Cov neeg siv khoom ntawm cov khoom siv tshuaj xyuas kev ruaj ntseg
peb cov X-ray Txawv Tebchaws Lub Cev Lub Cev Ntsuas yog cov khoom lag luam zoo tsim los pab cov tub lag luam txhim kho kev nyab xeeb thiab zoo ntawm lawv cov khoom. Nrog kev siv thev naus laus zis, kev tsim kho tau yooj yim, thiab cov yam ntxwv zoo rau cov neeg siv, nws yog qhov kev daws teeb meem zoo tshaj plaws rau cov khoom noj thiab dej haus, tshuaj, thiab lwm yam lag luam. Peb ntseeg siab tias peb cov khoom yuav pab peb cov neeg siv khoom txuag lub sijhawm thiab nyiaj txiag, ua kom muaj txiaj ntsig zoo, thiab thaum kawg, muab cov khoom muaj kev nyab xeeb rau cov neeg siv khoom.
